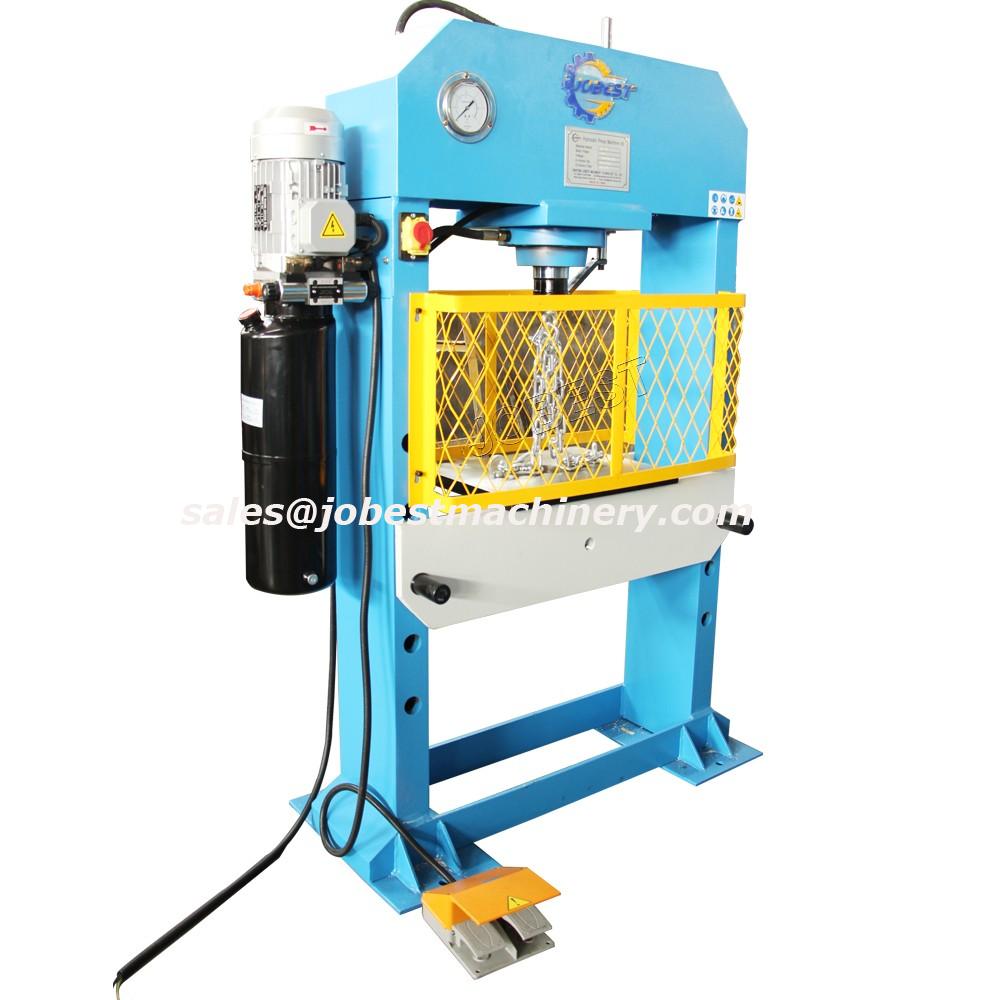

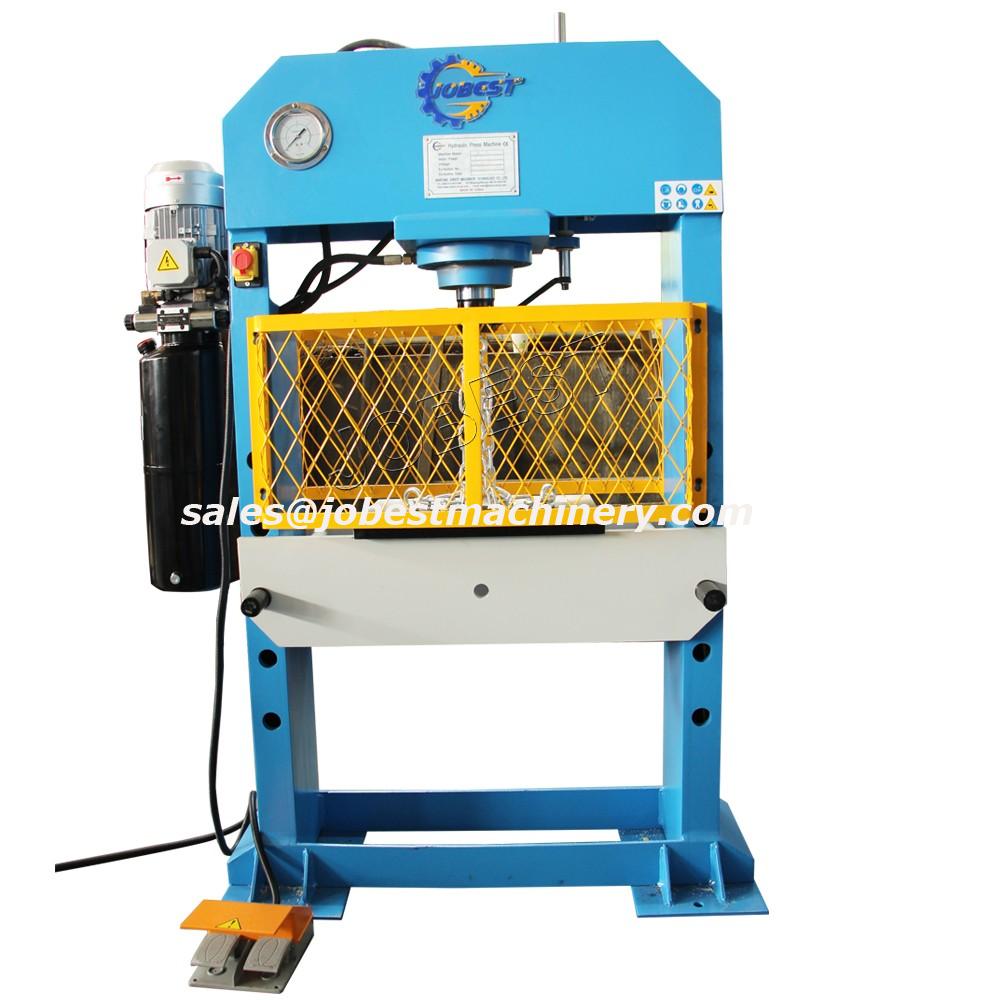

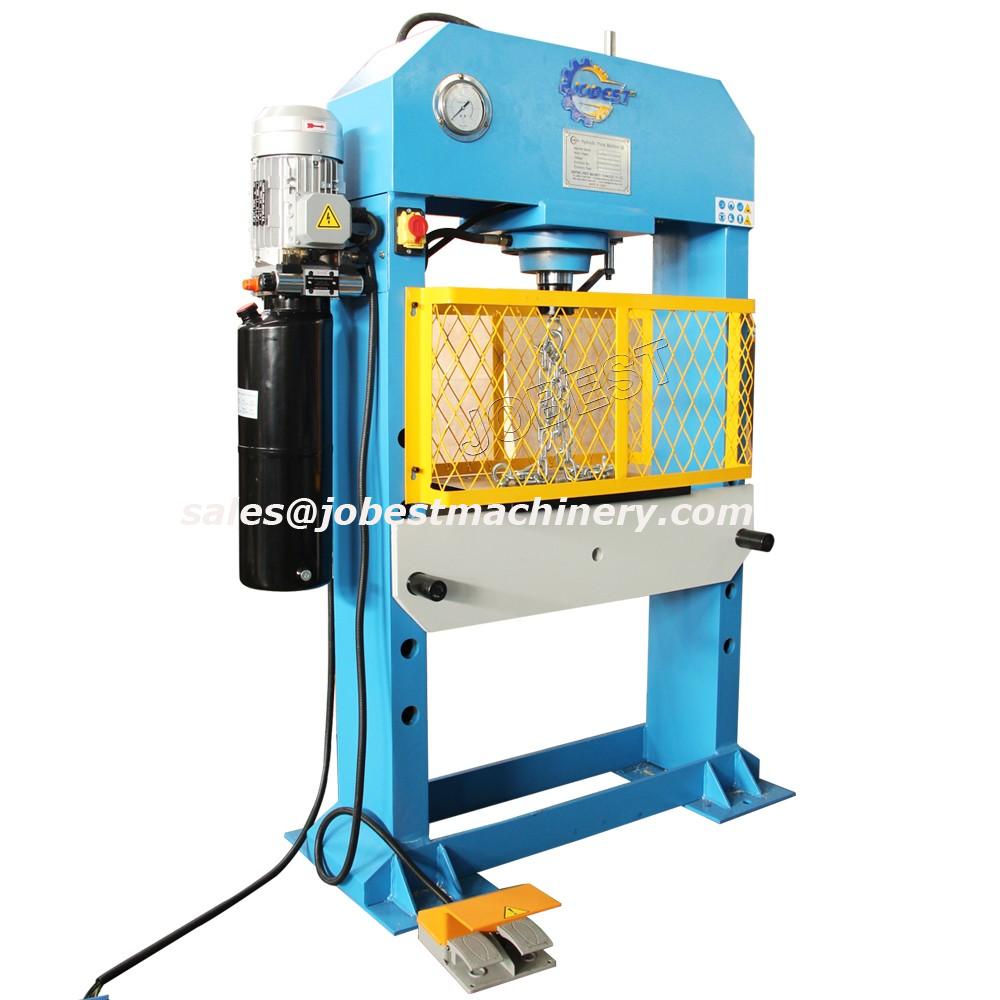

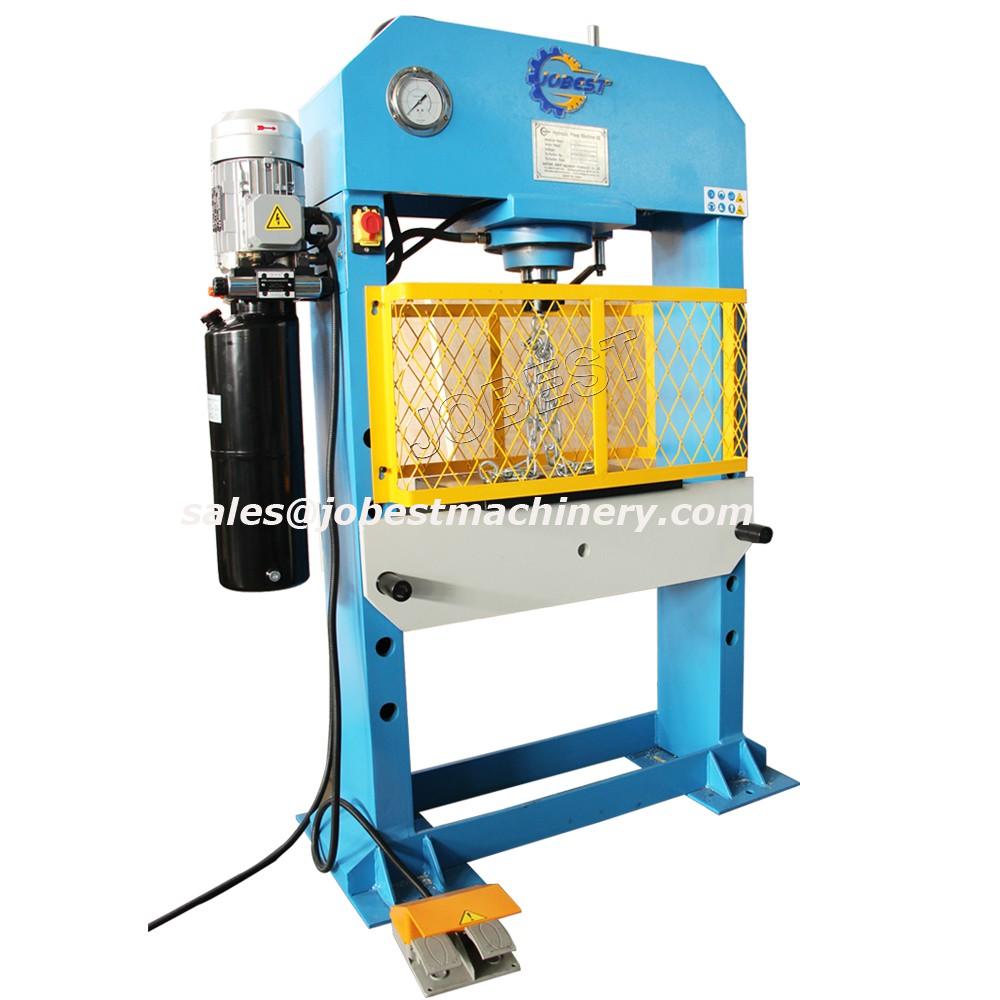

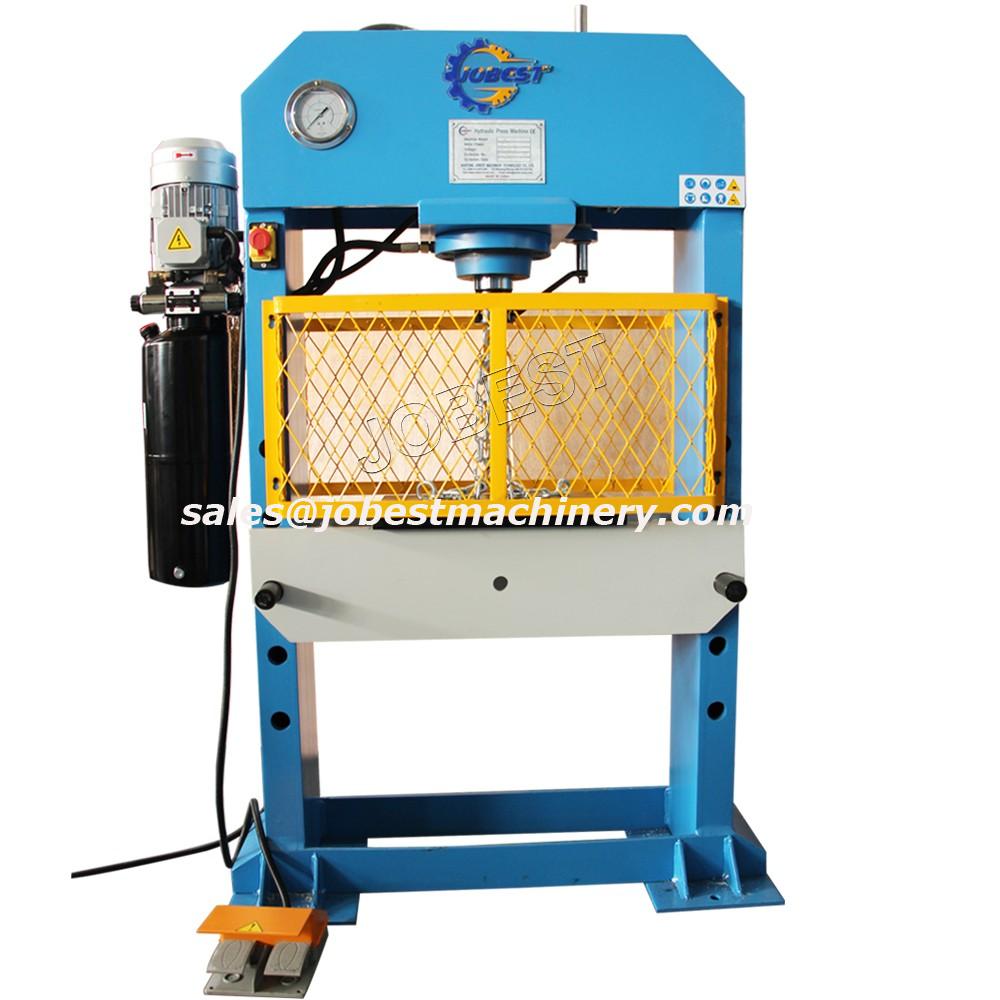

HP HPB 10T 20T 30T 50T 63T 100T 150T 200T 300T H Type Frame Workshop Hydraulic Press Machine
Product Description
The HP-50 is a high-performance industrial hydraulic press delivering 50-ton pressing force for metal stamping, forming, and assembly. Its welded steel frame ensures durability, while precision pressure control and safety guards guarantee reliable operation. Compatible with manual/semi-automatic modes and versatile molds, it’s ideal for automotive parts, hardware manufacturing, and more. Features low noise and extended lifespan for efficient workshop production.
Model | Capacity-(KN) | Pressure-(MPA) | Travel-(mm) | Weight-(kg) | Dimension-(mm) |
HP-30T | 300 | 25 | 220/405 | 720 | 1300x600x1200 |
HP-50T | 500 | 25 | 220/405 | 1200 | 1650x700x2000 |
HP-63T | 630 | 30 | 220/405 | 1600 | 1920x750x2100 |
HP-100T | 1000 | 30 | 250/405 | 1650 | 1950x750x2200 |
HP-150T | 1500 | 40 | 250/405 | 1900 | 1950x750x2200 |
HP-200T | 2000 | 40 | 300/405 | 2520 | 2050x1000x2300 |
HP-300T | 3000 | 42 | 300/405 | 4900 | 2100x1050x2700 |
HP-400T | 4000 | 42 | 300/405 | 7000 | 2450x1100x2980 |
HP-500T | 5000 | 45 | 300/405 | 9000 | 2600x1200x2980 |
Machine Characteristic
• High efficiency, low-noise;
• Foot pedal control;
• Well hydraulic control;
• Excellent quality;
• V-block;
• Can add press brake mould for bend plate;
• Table can be lifted through a chain driven by the main cylinder;
